Material: carbon steel , zinc plate Grade: 4.8 grade Note: per set bolt include as the following , Bolt , Washer , Spring , Hexagon nut
Size
Length(mm)
Fang Length (mm)
Head Size (mm)
Inch
metric
1/4X3/4
M6 X19
19
3
22/25
1/4X1
M6 X25
25
3
22/25
1/4X1-1/4
M6 X32
32
3
22/25
1/4X1-1/2
M6 X38
38
3
22/25
1/4X2
M6 X51
51
3
22/25
5/16X3/4
M8 X19
19
4.5
26/28
5/16X1
M8 X25
25
4.5
26/28
5/16X1-1/4
M8 X32
32
4.5
26/28
5/16X1-1/2
M8 X38
38
4.5
26/28
5/16X1-3/4
M8 X44
44
4.5
26/28
5/16X2
M8 X51
51
4.5
26/28
5/16X2-1/2
M8 X64
64
4.5
26/28
3/8X1
M10 X25
25
6
30/34
3/8X1-1/4
M10 X32
32
6
30/34
3/8X1-1/2
M10 X38
38
6
30/34
3/8X1-3/4
M10 X44
44
6
30/34

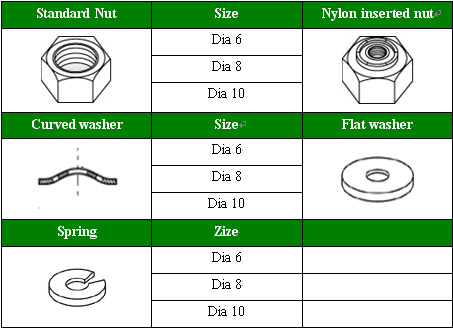

Standard bolt: Material: carbon steel , zinc plate Grade: 4.8 grade Note: per set bolt include as the following , Bolt , Washer (flat or curve) , Spring+ , Hexagon nut (standard or with nylon inserted nut)
Metric
Length
Size (mm)
Head
Size (mm)
M6 X25
25
22/25
M6 X30
30
22/25
M7 X25
25
23/25
M7 X35
35
23/26
M8 X30
30
26/28
M8 X35
35
26/28
M10 X35
35
30/34
M10 X45
45
30/34
