Engineering Plastics--PTFE

Key Features and Benefits:
PTFE is the most chemical resistance of all know plastics. Aged resistance and lowest coefficient of friction in all know solid materials.

Technical list:

Item

Unit

Value

Density

g/cm 3

2.2-2.3

Tensile strength

Mpa

14

Elongation at break

%

140

Impact strength of izod

Kj/cm 2

13

Working temperature

-180-260

Hardness

Shore

60-80

Thermal Expansion Coefficient

1.05x10 -4

Thermal Deformation Temperature

150

Surface Resistivity

3.7〜10 16

Dielectric Strength

KV/mm

10

Water absorption rate

%

<0.01

PTFE Plastics Applications:
Suitable for corrosion-resistant liner, seal, lining and gasket, scrap, guide rail, dielectric material for different frequency, bridge bearing slide.

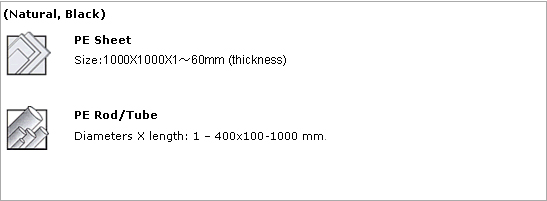

PE products Specification:
